Experiment Mo-04
Tipping Block
Description: A
large wooden block is placed on a rough surface so that it will not slide. A force
is applied with a spring balance, first parallel to the horizontal, along the
top edge. Then the force is applied perpendicular to a diagonal drawn to the tipping
axis. When the force is applied in this manner, the minimum required force is
less than when it is applied in the horizontal direction.

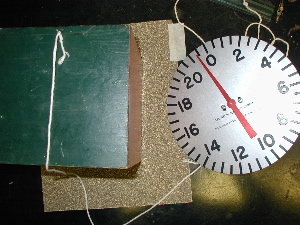

Left:
Block, Right: spring balance.
Right:

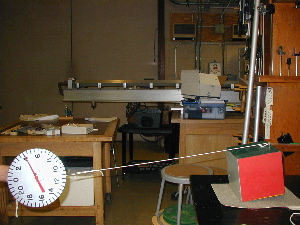

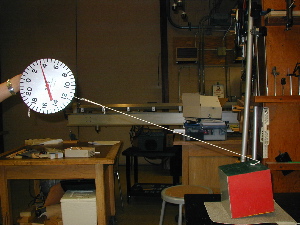

Pulling at an angle requires less force than pulling straight, as shown
on the left.
Materials: wooden
block, rough surface, spring balance, string & nail
