Experiment Fj-01
Bernoulli Tubes
Description: A
glass tube with a constriction carries a stream of air, provided by a vacuum.
A water manometer connected between the constriction and the larger diameter sections
shows the pressure is lower in the constriction where the air velocity is high.

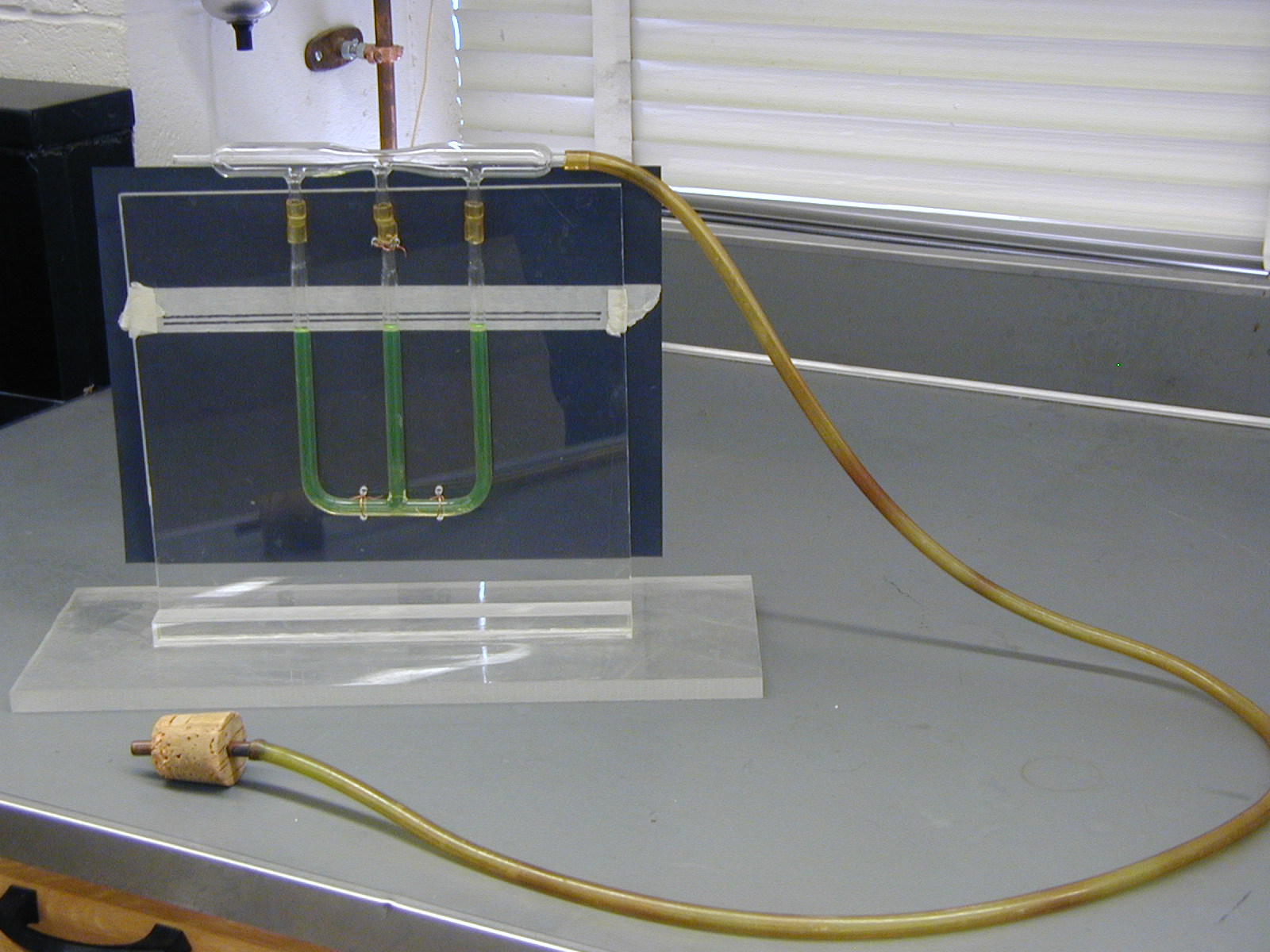

Setup
of tubes. Hose will connect to vacuum.
Tubes
before air flow. All pressures are equal.

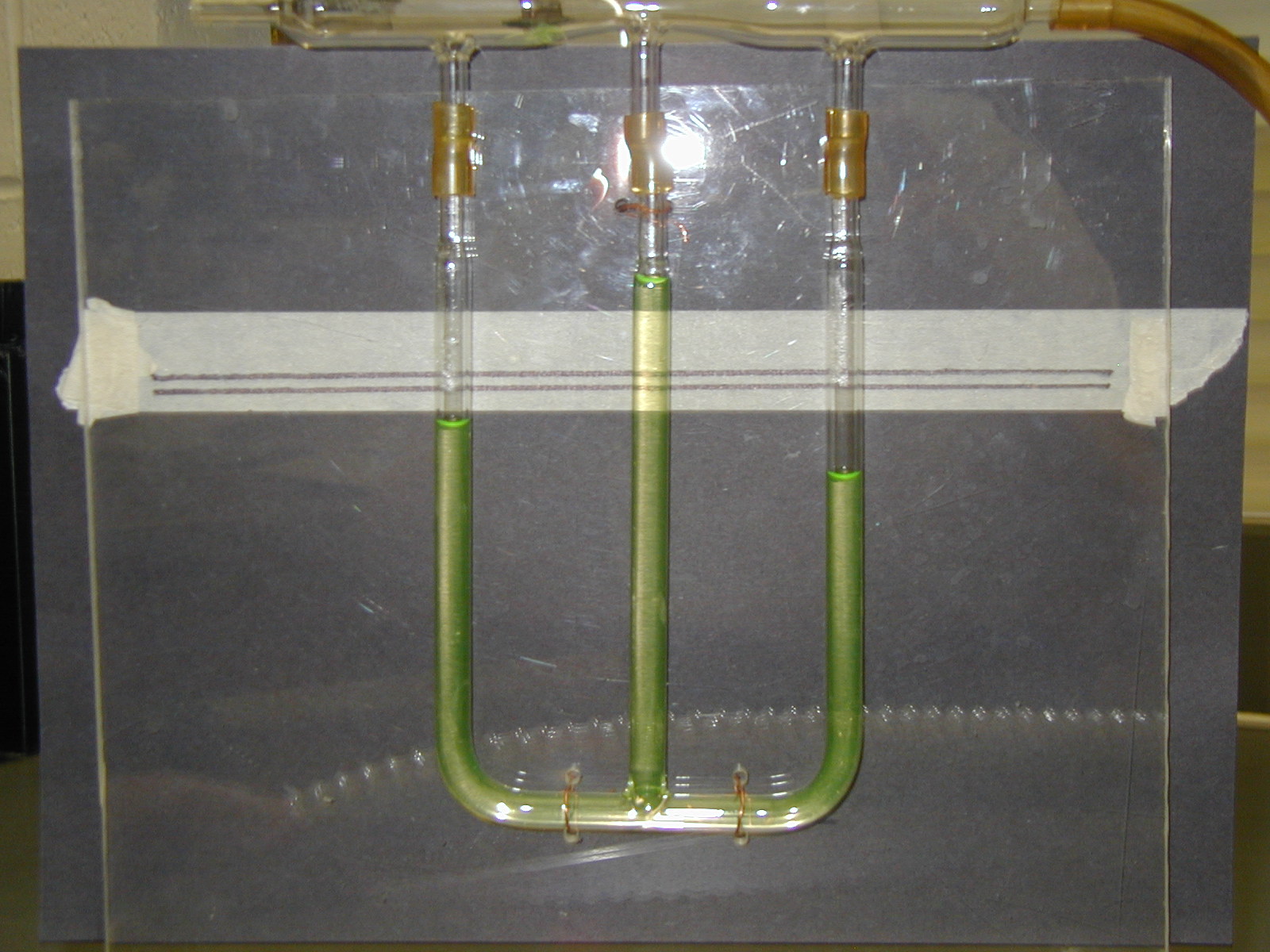

Tubes
during air flow. Middle tube has a visibly higher level of fluid, lower
pressure.
