Experiment Ec-06
Electrostatic Ping-Pong
Description: A
ping-pong ball, coated with silver conducting paint, is suspended between two
metal conducting plates, which are attached to a Wimshurst machine. When the machine
is started, the ball will be attracted to one of the plates. Once it makes contact
with the plate and charge is transferred between the plate and the ball, it will
be repelled from that plate and be attracted to the other plate. The process
will repeat itself over and over.

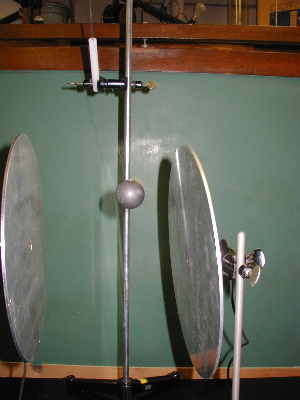

Ping-pong
ball at rest between two metal plates.

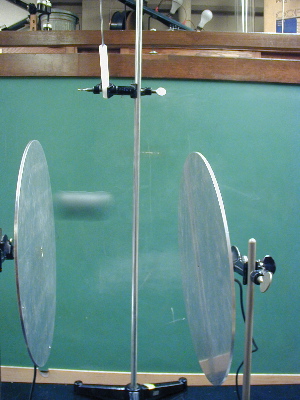

Ping-pong
ball bouncing between the two plates
SAFETY
INSTRUCTIONS
Be
sure to discharge the Wimshurst machine before touching any metal components
of it.
Materials: Ping-pong
ball, two metal conducting plates, Wimshurst machine.
