PHOBOS IR @ 10 o'clock (12/18/97)

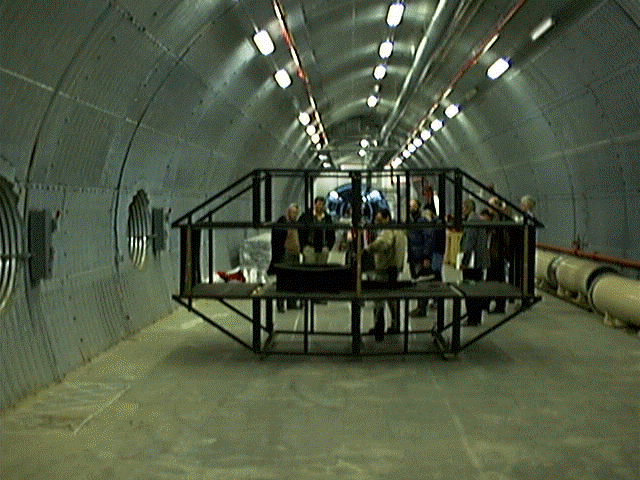

View of the full scale mock-up of the PHOBOS magnet from the side opposite the spectrometer arms (so you are looking in the direction that will be into the spectrometer arms). On the left side you may recognize the PHOBOS spokesperson and project manager (shown here for scale). Other interested parties are also brainstorming on the right.

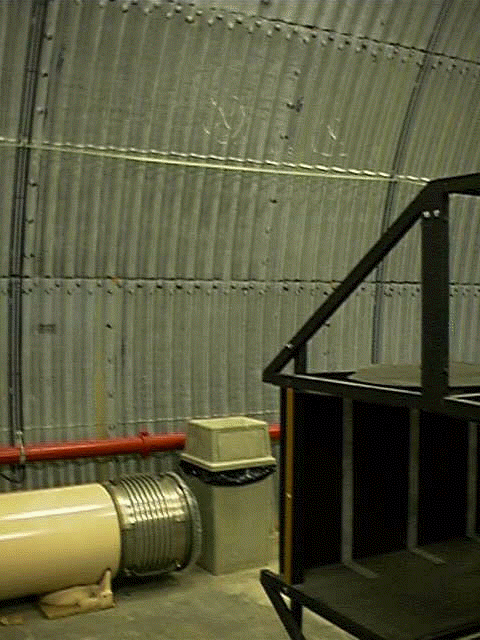

View of the inner wall showing the approximate location for two of the five cable ports through the berm ("X" marks the spot above and to the right of the trash receptacle). These ports (one foot in diameter) are ten feet off the floor inside the IR and slope down to eight feet outside the berm.

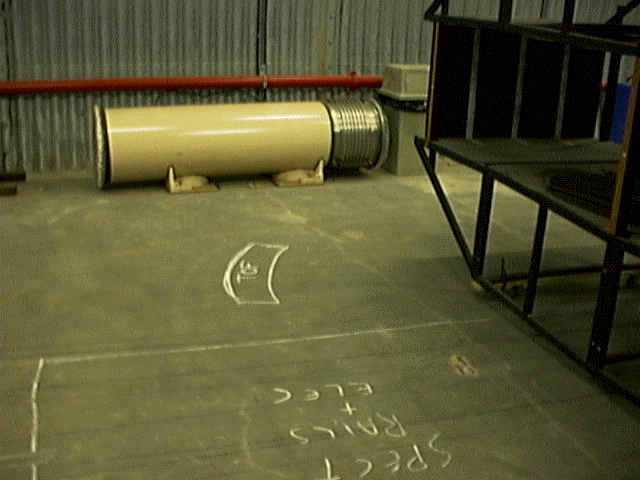

View of the inner wall showing the location of the second TOF wall section drawn in chalk on the floor. (Again, the first TOF wall section sits on the platform inside the magnet manifold).

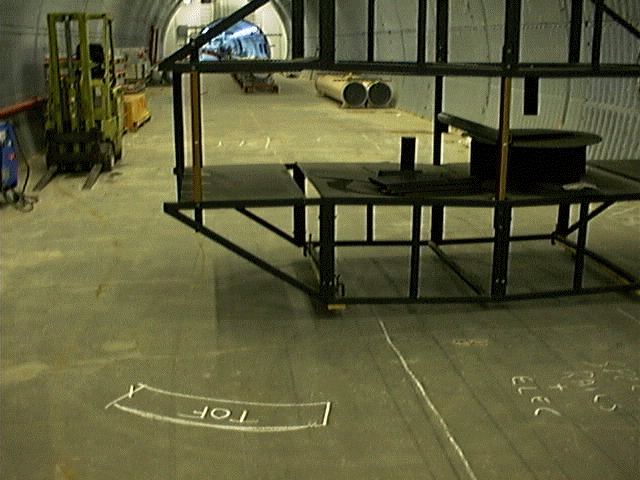

View from spectrometer-side along the inner wall. The location of the second TOF wall section is clearly visible on the floor. The forklift in the background could be easily driven past the PHOBOS apparatus demonstrating the clearance on the inner side.
