Experiment Eo-12
RC Time Constant
Description: A
1.5 volt source, a resistor and a capacitor are connected in a circuit with a
special switch to prevent sparking. The time constant is observed both on energizing
and de-energizing the circuit. The voltages across the resistor and the capacitor
are observed with a dual trace oscilloscope

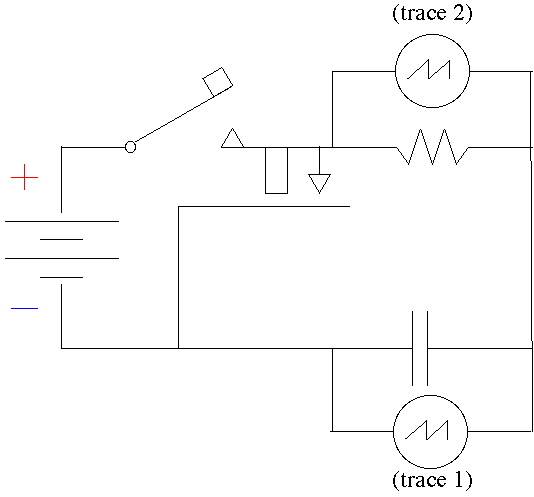

Schematic
for experimental setup.
Materials: 1.5
volt power source, resistor,capacitor, oscilloscope, wire, switch
