Experiment Eg-02
Ohm's Law
Description: A
rheostat, ammeter, and a power source are connected in series. A voltmeter
is connected across the rheostat. The length of the wire used in the rheostat
is proportional to the ratio of the voltage to current.
Top:

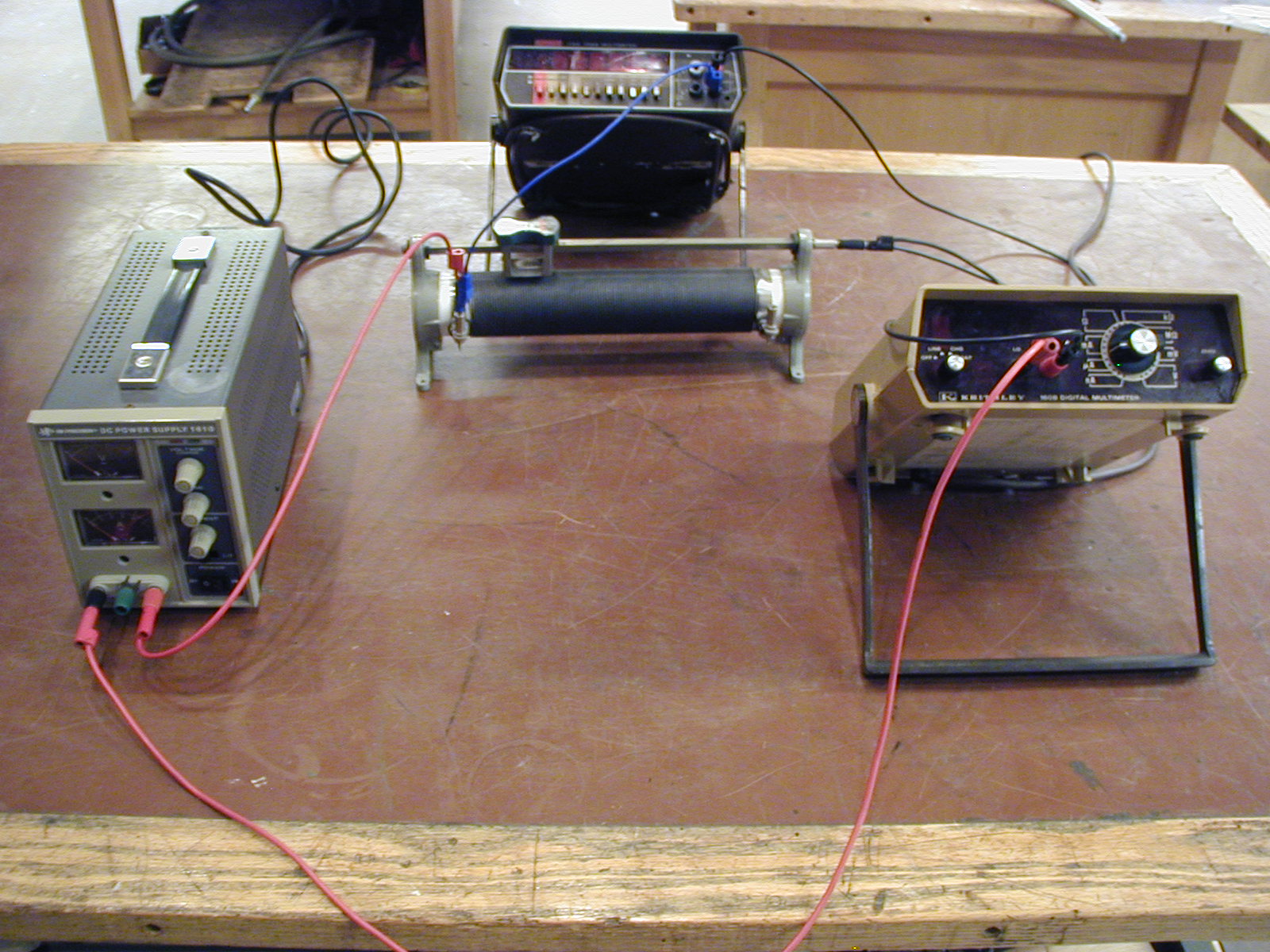

voltmeter, center: rheostat, bottom left: battery, bottom right: ammeter.

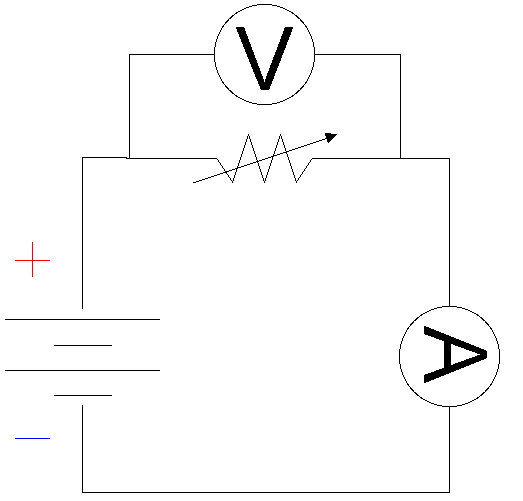

Schematic
of the experimental setup.
